Explore PESC vinyl sheet pile profiles manufactured in the USA for civil, marine and water-control applications. Compare profile dimensions, structural properties, wall thicknesses and gasket options to identify the appropriate sheet piling solution for your project.

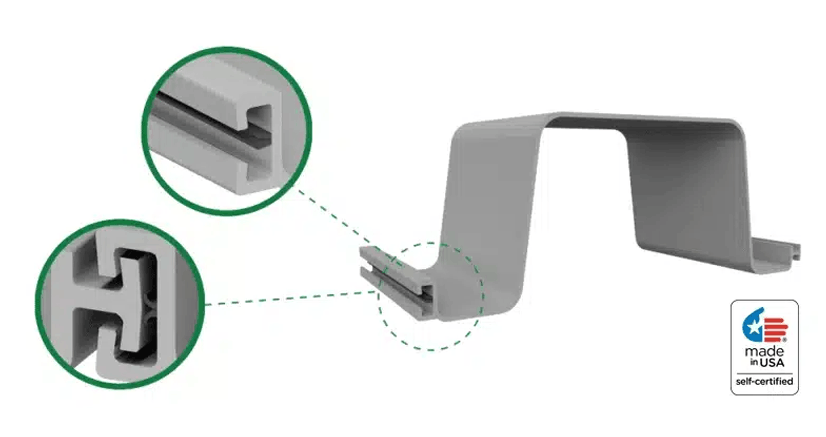

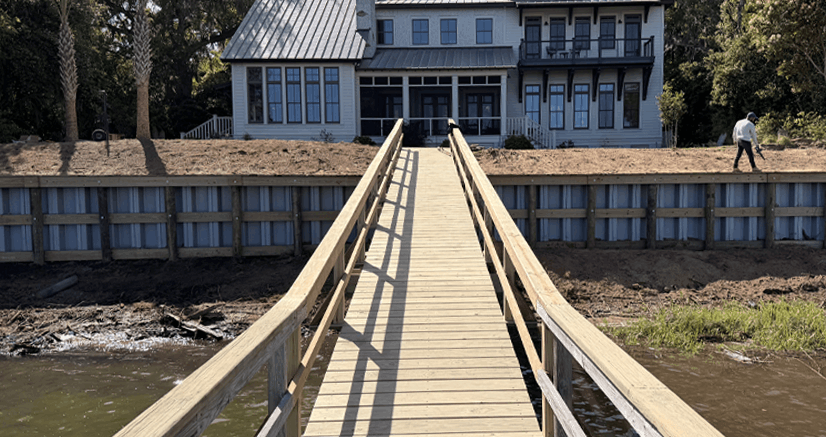

PESC-24 is a wide, box-profile vinyl sheet pile engineered for durability, corrosion resistance, impact resistance and UV resistance. Designed for applications requiring enhanced water-tightness, PESC-24 can incorporate soft PVC gaskets co-extruded into the interlocks during manufacturing.
The PESC-24 range is available in three wall thicknesses with identical width and depth dimensions, allowing designers and contractors to select a profile based on project performance and structural requirements
The profile comes in three different wall thicknesses, all having identical width and height dimensions and are compliant to the requirements of ASTM D8427-21. This specification sets the requirements for material and physical properties, including dimensional tolerances, of rigid polyvinyl chloride (PVC) exterior profiles used for heavy construction, geotechnical, commercial, and residential sheet piling. Compliance of all PESC-24 variations ensures easy installation using standard tools and equipment and are ideal for a very wide range of project applications in consideration to financial aspects.
Key Features:
- Wide profile for efficient installation and low wall hydraulic conductivity rate
- Low weight for easy transportation and installation
- Compatibility with commonly available installation machines (excavators, cranes, piling rigs and vibro-hammers)
- Complete corrosion resistance
- Option to equip with a gasket
- Three wall thicknesses to optimize costs
- Universal steel guide for installation depths >40′
- Wide range of applications
Specifications
| Section | Width | Depth | Thickness | Cross Section Area | Section Modulus | Moment of Inertia | Allowable Moment | Ultimate Moment | Ultimate Stiffness | Impact Resistance ASTM 4226 P.A. | Weight | Cap Compatibility | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (W) | (H) | (T) | Per Pile | Per Wall | |||||||||
| in | in | in | in2 | in3/ft | in4/ft | ft-kips/ft | ft-kips/ft | ibf-in2 x106/ft | ft-lb/in | lb/ft | lb/ft2 | ||
| mm | mm | mm | cm2 | cm3/m | cm4/m | kNm/m | kNm/m | kNm2/m | kJ/m2 | kg/m | kg/m2 | ||
| ECOSEAL PESC-24-6.4 | 24 | 9 | 0.25 | 11.2 | 14.6 | 69.5 | 3.9 | 7.8 | 26.2 | 1,500 | 6.99 | 3.5 | ESC 290 |
| 610 | 230 | 6.35 | 72.5 | 787 | 9,496 | 17.3 | 34.6 | 246.9 | 6.7 | 10.4 | 17.1 | ||
| ECOSEAL PESC-24-7.6 | 24 | 9 | 0.30 | 13 | 17.4 | 80.9 | 4.6 | 9.2 | 30.5 | 1,500 | 8.13 | 4.06 | ESC 290 |
| 610 | 230 | 7.62 | 83.8 | 935 | 11,053 | 20.6 | 41.1 | 287.4 | 6.7 | 12.1 | 19.8 | ||
| ECOSEAL PESC-24-9.0 | 24 | 9 | 0.35 | 14.8 | 20.1 | 92.2 | 5.4 | 10.7 | 34.8 | 1,500 | 9.21 | 4.61 | ESC 290 |
| 610 | 230 | 9.0 | 95.2 | 1,081 | 12,593 | 23.8 | 47.6 | 327.4 | 6.7 | 13.7 | 22.5 | ||
*Safety factor = 2 Profile meet requirements of ASTM D8427-1 and USACE EM 1110-2-2502.
ESC Ecoseal Sheet Piling with Gaskets (At client’s request)
Vinyl sheet pile profiles are manufactured with an integrated gasket, which ensures 100% water-tightness of the locks provided that they are properly installed.
